COMPAS

Commercial compact chillers

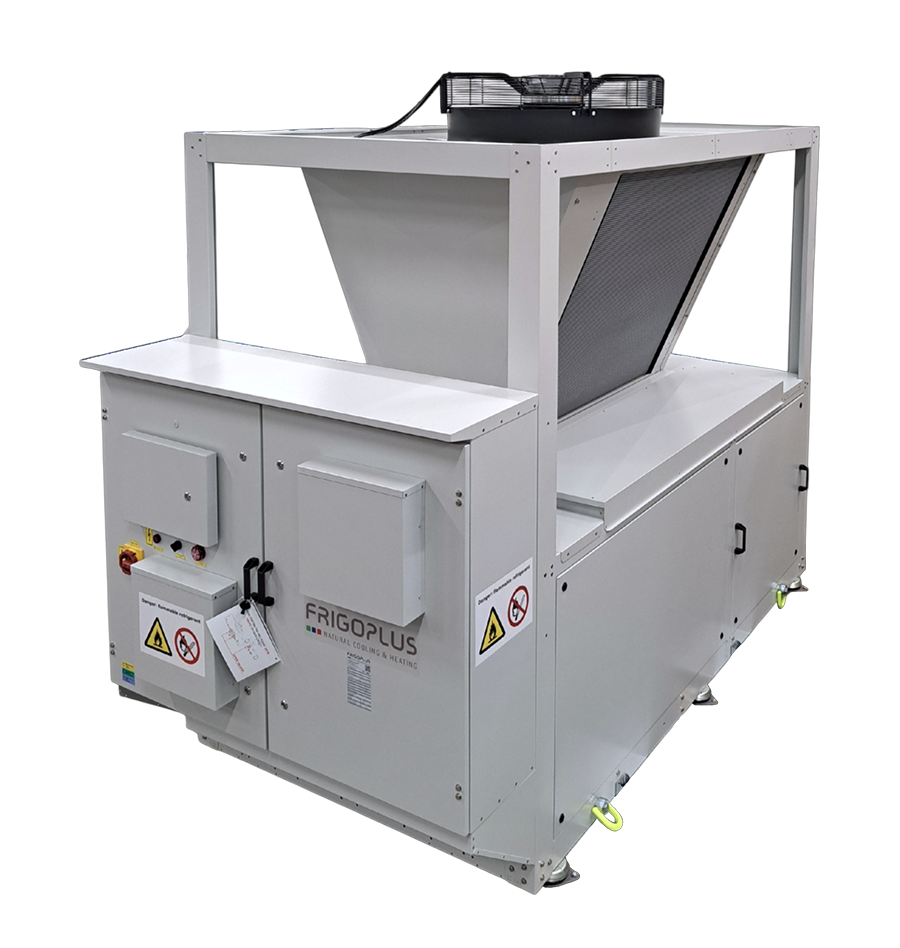

COMPAS units are high-efficiency, compact water chillers. They are developed to meet the cooling requirements of smaller commercial or industrial refrigeration systems and are intended for outdoor installation.

The COMPAS unit consists of one or two refrigeration circuits. Each refrigeration circuit uses hermetic scroll compressors with advanced performance, designed and certified for operation with flammable refrigerants. Thanks to a wide operating frequency range, scroll compressors provide a broad range of achievable cooling capacity.

The evaporator is a shared dual plate heat exchanger with advanced characteristics (SWEP True Dual technology), connecting both refrigeration circuits to the hydraulic circuit. This ensures maximum heat transfer efficiency while reducing the required refrigerant charge.

The air condenser is of microchannel aluminum design. Axial fans equipped with EC motors allow variable speed control and variable condensing temperature operation.

Each COMPAS unit is factory tested and delivered pre-charged with refrigerant and oil. Conformity assessment is carried out in accordance with the European Pressure Equipment Directive (PED) 2014/68/EU. The unit complies with all safety and environmental requirements.

Number of refrigeration circuits*: 1 or 2

*Number of refrigeration circuits equals the number of compressors

Number of air heat exchangers (condensers): 2

Condenser configurations: K2 and L2

❮ ❯

GENERAL

• Powder-coated galvanized steel casing, corrosion and weather resistant, standard color RAL 7035
• Removable casing panels
• Anti-vibration mounts
• Compressor compartment located in a separate protective enclosure within the structure
• Pipe insulation to prevent condensation
• Safety strategy selection – permanent compressor compartment ventilation or refrigerant leak detector combined with ATEX fan

ELECTRICAL

• Main power switch and phase monitoring relay
• Electrical protection for all components
• Advanced microprocessor controller supervising full unit operation
• Electronic expansion valve for precise refrigerant flow control
• Communication protocols: Modbus TCP/IP, Modbus RTU or BACnet IP
• Remote unit access

HYDRAULIC CIRCUIT

• Stainless steel hydraulic piping
• Hydraulic connection via free stainless steel flange
• Air vent valve
• Safety valve
• Drain valve
• Flow switch
• Thermal insulation of piping

GENERAL

• Custom casing color
• Low-noise version with additional sound insulation

ELECTRICAL

• Cabinet lamp with socket
• Electrical cabinet heater (250 W)
• Electrical energy meter
• Remote monitoring (Siemens Cloud)

HYDRAULIC CIRCUIT

• Primary-side circulation pump
• Dual primary-side pumps (duty + standby)
• Buffer tank (2 connections) or hydraulic separator (4 connections) with primary-side circulation pump
• Y-strainer filter
• Expansion vessel
• Flow meter
• Shut-off valves (butterfly valves)
• Self-regulating heating cables for frost protection
• Hydraulic circuit upgrade using hydromodule
