FLIPPER

Modular, compact liquid chillers / heat pumps

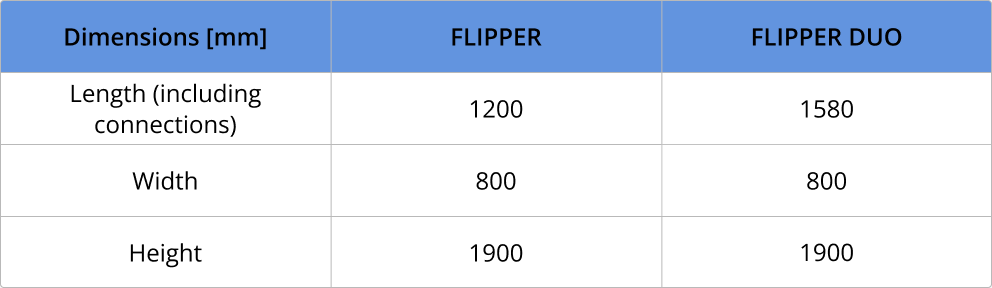

The FLIPPER series consists of high-efficiency, water-cooled chillers and heat pumps featuring a compact, modular design. The footprint of the unit casing fits within the dimensions of a standard Euro pallet (1200 × 800 mm), simplifying transportation, installation and servicing. The units are intended exclusively for indoor installation.

The units use scroll compressors controlled by frequency inverters, enabling precise capacity regulation. Plate heat exchangers ensure efficient heat transfer while reducing the required refrigerant charge. FLIPPER DUO units feature two refrigerant circuits connected to a common hydronic circuit via a dual plate heat exchanger (SWEP True Dual).

Two high-efficiency pumps controlled by variable frequency drives enable flow rate regulation on the primary evaporator and condenser sides. By connecting multiple units in parallel, a flexible heating and cooling system with a higher overall capacity can be configured.

Each unit is factory-tested in accordance with EN 14511 and supplied pre-charged with refrigerant and oil. Conformity assessment of the assembly is carried out in accordance with Directive 2014/68/EU on pressure equipment (PED).

FLIPPER Brochure
(PDF 1,7 MB)

Number of compressors*: 1 or 2

*Number of compressors equals the number of independent refrigerant circuits

FLOW UNDER CONTROL

Factory-installed Grundfos MAGNA3 EC pumps provide benefits:

•  Stable evaporator flow under all operating conditions
•  Lower pumping energy consumption
•  Faster commissioning
•  Simplified installation

---

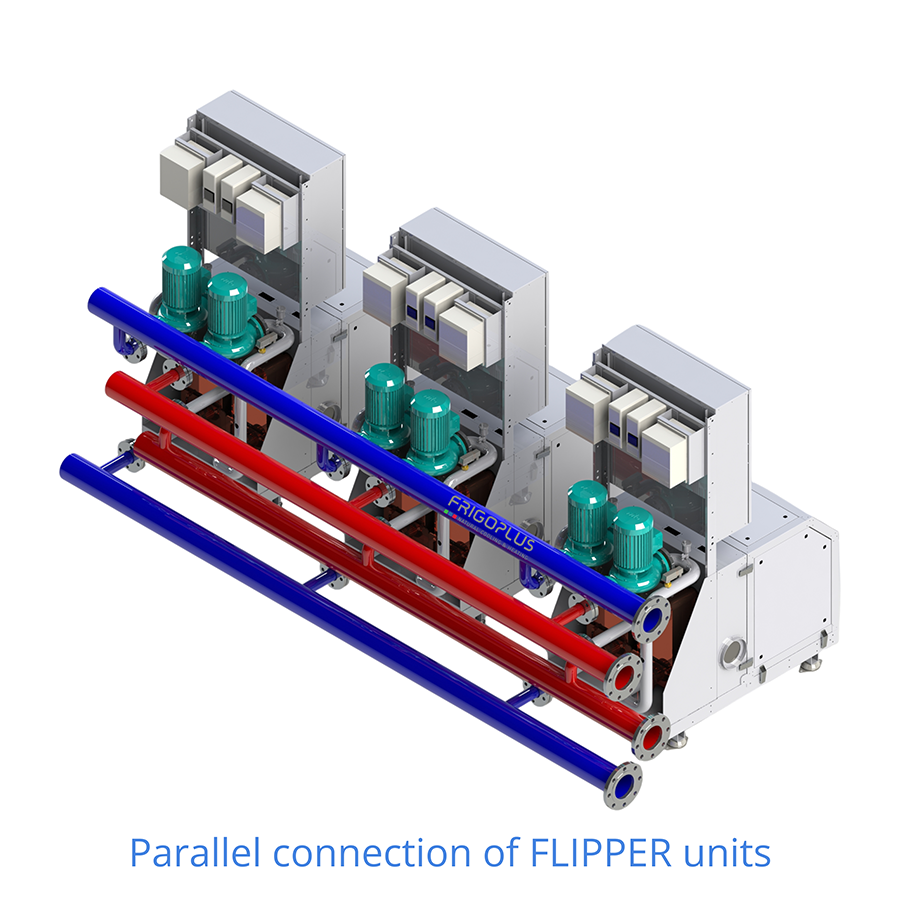

FLIPPER units can be connected in parallel, i.e. combined to create a flexible
system with a higher heating or cooling capacity. Such a configuration is
particularly suitable for retrofitting existing systems
(e.g. buildings with limited installation space).

❮ ❯

GENERAL

• Powder-coated galvanized steel housing, corrosion and weather resistant, standard color RAL 7035
• Removable housing panels
• Anti-vibration mounts
• Pipe insulation to prevent condensation
• Safety strategy — refrigerant gas leak detector, differential air pressure switch and ATEX fan
• ATEX-certified key components of the refrigerant circuit; compressor, pressure switch and EEV

ELECTRICAL

• Electrical control cabinet equipped with a 4-pole main switch and phase-monitoring relay
• Electrical protection for all components
• Advanced Siemens microprocessor controller for comprehensive unit control and monitoring
• Touchscreen display for unit monitoring and operation
• Power supply for pumps up to 1.5 kW and pump control signals
• Electrical cabinet light with integrated socket
• Electronic expansion valve for precise refrigerant flow control
• Communication protocols: Modbus TCP/IP or BACnet/IP
• GSM router
• Remote access to the unit
• For heat pump use:
  • Auxiliary heater control via 0–10 V analog signal
  • Three-way valve control for domestic hot water (DHW) production

HYDRONIC CIRCUIT

• Piping made of stainless steel
• Stainless steel loose flange connections
• High-efficiency EC pump on the evaporator (cold) side
• High-efficiency EC pump on the condenser (hot) side
• Air vent valve
• Safety relief valve
• Drain valve
• Flow sensor
• Piping thermal insulation

GENERAL

• Custom housing RAL color

ELECTRICAL

• Remote unit monitoring (Siemens Cloud)
• Change of setpoint value

HYDRAULIC CIRCUIT

• Hydraulic circuit upgrade using hydromodule
