Cooling capacity:
Number of refrigeration circuits*: 1 or 2
*Number of refrigeration circuits equals the number of compressors

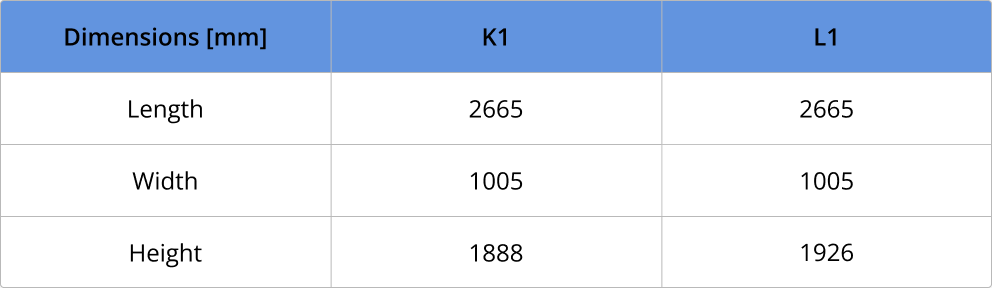

Unit dimensions:
- Length: 3080 mm
- Width: 1600 mm
- Height: 2223 mm
MINILINE
Small-capacity chillers
The MINILINE series consists of high-efficiency, air-cooled water chillers in a very compact design.
They are developed to meet the cooling requirements of smaller refrigeration systems and are intended for outdoor installation.
The compressor is semi-hermetic reciprocating, controlled by a high-efficiency frequency inverter
that provides soft start and continuous compressor speed variation for cooling capacity control.
In MINILINE configurations with two refrigeration circuits, a shared dual plate evaporator with advanced characteristics
(SWEP True Dual technology) is used to connect both refrigeration circuits to the hydraulic circuit via a single plate evaporator.
This design ensures unit compactness, maximum heat exchange efficiency, and a reduced refrigerant charge.
The air condenser is of microchannel aluminum design.
Axial fans with EC motors enable variable speed control and variable condensing temperature operation.
Each MINILINE unit is factory tested and delivered pre-charged with refrigerant and oil.
Conformity assessment is carried out in accordance with the European Pressure Equipment Directive (PED) 2014/68/EU.
The unit complies with all safety and environmental requirements.
Cooling capacity:
K1
L1
Number of refrigeration circuits*: 1
*Number of refrigeration circuits equals the number of compressors
GENERAL
- Powder-coated galvanized steel housing, corrosion and weather resistant, standard color RAL 7035
- Removable housing panels
- Anti-vibration mounts
- Compressor compartment located in a separate protective enclosure within the housing
- Pipe insulation to prevent condensation
- Safety strategy — choice between permanent compressor compartment ventilation or a refrigerant leak detector combined with an ATEX fan
ELECTRICAL
- Main power switch and phase monitoring relay
- Electrical protection for all components
- Advanced microprocessor controller supervising full unit operation
- Electronic expansion valve for precise refrigerant flow control
- Communication protocols: Modbus TCP/IP, Modbus RTU or BACnet IP
- Remote unit access
HYDRAULIC CIRCUIT
- Hydraulic piping made of stainless steel or copper, depending on diameter
- Hydraulic connection via copper threaded connection or free stainless steel flange, depending on required connection size
- Air vent valve
- Safety valve
- Connections for system filling and draining
- Flow switch
- Thermal insulation of piping
GENERAL
- Custom housing color
- Low-noise version with additional sound insulation
- Waste heat recovery via a series-connected plate heat exchanger, in one of two ways:
- Plate heat exchanger – condenser
- Desuperheater (no condensation)
ELECTRICAL
- Cabinet lamp with socket
- Electrical cabinet heater (250 W)
- Remote monitoring (Siemens Cloud)
HYDRAULIC CIRCUIT
- Integrated primary-side circulation pump
- Integrated hot-side circulation pump (only if waste heat recovery is selected)
- Integrated buffer tank (2 connections) or hydraulic separator (4 connections)
- Y-strainer filter
- Expansion vessel
- Flow meter
- Self-regulating heaters on piping for frost protection (water/glycol)
- Hydraulic circuit upgrade possible using a hydromodule
