PICO

High-efficiency, compact water chiller / heat pump (small capacity)

PICO units stand out for exceptional compactness: the unit dimensions allow it to be placed on a standard Euro pallet (1200 mm length and 800 mm width). This significantly simplifies transport, installation and servicing.
The PICO unit uses a hermetic scroll compressor with advanced performance, enabling very low noise levels in operation. The scroll compressor is controlled by a high-efficiency frequency inverter (drive) that provides soft start and continuously variable compressor speed to regulate cooling / heating capacity. The unit can be equipped with two smart pumps (one on the evaporator side and one on the condenser side), improving unit control and efficiency and, consequently, the performance of the entire system.

The evaporator and condenser are plate heat exchangers with advanced heat transfer characteristics, ensuring maximum heat transfer efficiency and significantly reducing the required refrigerant charge.

Each unit is factory tested and delivered pre-charged with refrigerant and oil. Conformity assessment is carried out in accordance with the European Pressure Equipment Directive (PED) 2014/68/EU, meeting all safety and environmental requirements.

Number of refrigeration circuits*: 1

*Number of refrigeration circuits equals the number of compressors

Unit dimensions:

• Length: 1300–1400 mm
• Width: 800 mm
• Height: 1450 mm

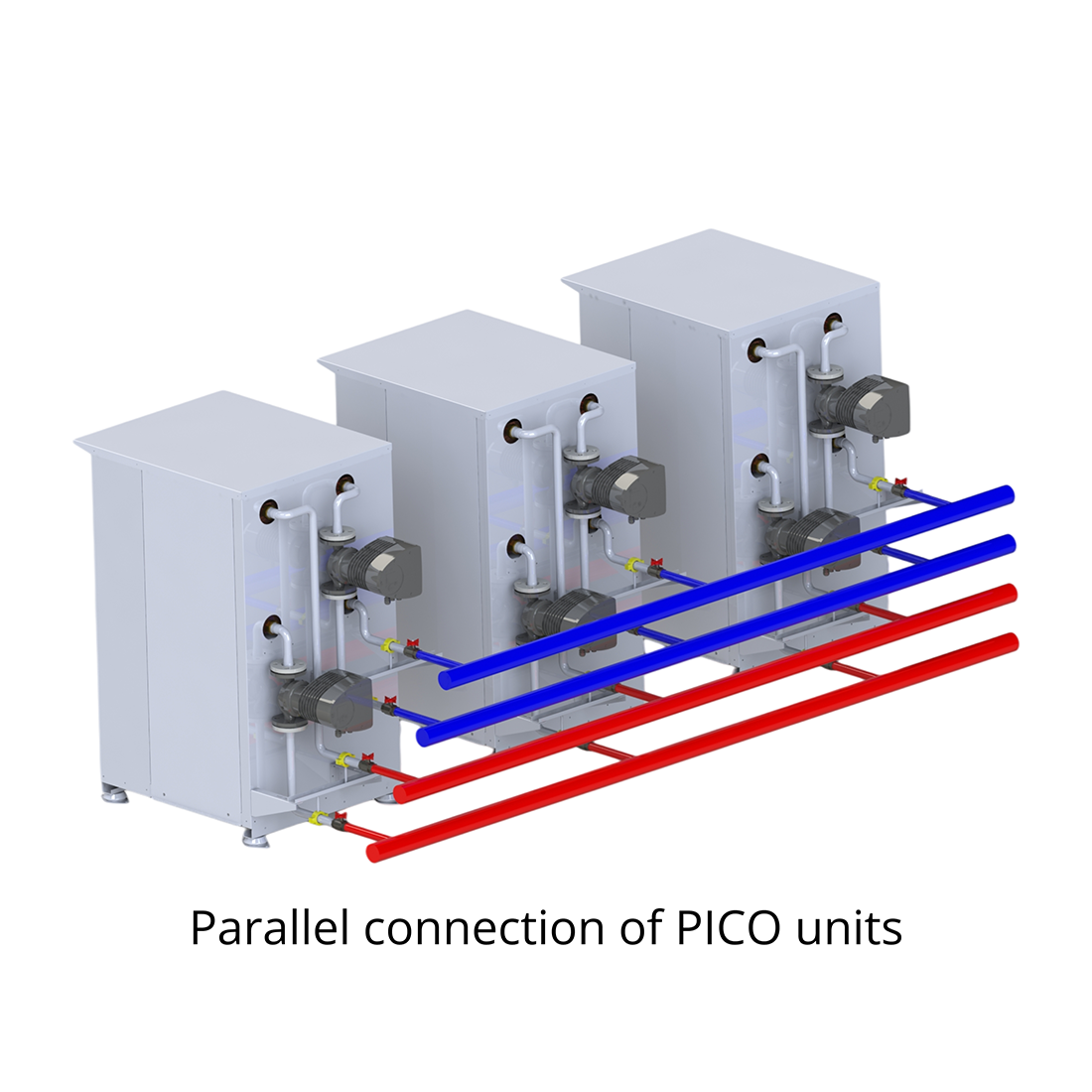

PICO units can be connected in parallel, i.e. combined to create a flexible system
with higher heating or cooling capacity. Such a configuration is suitable for
retrofitting existing systems (e.g. buildings with limited installation space).

❮ ❯

GENERAL

• Powder-coated galvanized steel housing, corrosion and weather resistant, standard color RAL 7035
• Removable housing panels
• Anti-vibration mounts
• Compressor compartment located in a separate protective enclosure within the housing
• Pipe insulation to prevent condensation
• Safety strategy selection – permanent compressor compartment ventilation or refrigerant leak detector combined with ATEX fan

ELECTRICAL

• Main power switch and phase monitoring relay
• Electrical protection for all components
• Advanced Siemens microprocessor controller supervising full unit operation
• Touch screen display for monitoring and control
• Electronic expansion valve for precise refrigerant flow control
• Communication protocols: Modbus TCP/IP, Modbus RTU or BACnet IP
• Remote unit access

HYDRAULIC CIRCUIT

• Stainless steel piping
• Hydraulic connection via free stainless steel flange/li>
• Air vent valve
• Safety valve
• Drain valve (for system filling/draining)
• Flow switch
• Thermal insulation of piping

GENERAL

• Custom housing color

ELECTRICAL

• Cabinet lamp with socket
• Electrical cabinet heater (250 W)
• Remote monitoring (Siemens Cloud)

HYDRAULIC CIRCUIT

• Shut-off valves
• Primary pump on the cold (evaporator) side and hot (condenser) side
• Hydraulic circuit upgrade using hydromodule
